Etching is one of the most critical chemical processes in PCB and flexible PCB manufacturing. It removes unwanted copper from the laminate. It leaves behind the designed circuit pattern. The choice of a PCB etching solution has a direct influence on line accuracy. It also affects production speed, undercut control, and manufacturing cost. Different etching systems have different chemical characteristics. Some are suitable for traditional production. Others are designed for hi

FPC gold fingers serve as the electrical interface between a flexible circuit and its mating connector. Their performance directly affects contact resistance, insertion life, signal integrity, and long-term reliability. Common gold finger failures include exposed copper, scratches, oxidation, blackened surfaces, plating peeling, excessive dimensional variation, contact resistance drift, insufficient wear resistance, and edge burrs. Preventing these defects requires quality co

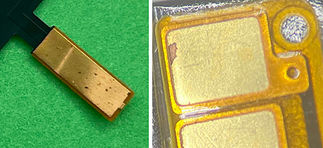

In rigid and flexible PCB manufacturing, surface appearance serves as the primary visual gauge of process quality. When circuits develop unexpected hues—ranging from subtle yellowing and rainbow streaks to severe black spots—the issue invariably extends beyond optics. FPC pad discoloration is typically the symptomatic manifestation of underlying metallurgical anomalies, surface contamination, or localized corrosion. Left unchecked, these color shifts can severely compromise s

In SMT assembly, tombstoning is a well-known defect where a chip component lifts from one side during reflow soldering and stands vertically or at an angle. Although it looks simple, it is actually the result of multiple design and process imbalances happening at the same time. In real production, tombstoning is rarely caused by a single factor. More often, it starts from PCB layout decisions made at the design stage. What Is Tombstoning in SMT? Tombstoning occurs when one en

Flexible printed circuits are widely used in compact electronic systems where mechanical flexibility and space savings are required. However, component pad design on flexible PCBs presents unique challenges that are rarely encountered in rigid boards. Engineers often experience issues such as cracked solder joints, pad lifting, or copper fatigue when components are mounted on flexible circuits. In most cases, these failures are not caused by materials or assembly defects, but

Moving a flexible PCB from prototype to mass production is not a simple matter of increasing quantity. While the circuit design may remain unchanged, the manufacturing approach, process controls, and risk factors evolve significantly as volumes scale up. Understanding these changes early helps avoid cost overruns, yield loss, and unexpected delays. This article explains what truly changes in flexible PCB manufacturing when transitioning from prototype builds to full-scale pro

In double-sided flexible printed circuit manufacturing, copper foil surface cleaning is a critical pretreatment step performed before photoresist coating. At Flex Plus, this process is based on long-term production experience in flexible and rigid-flex PCB manufacturing and is strictly controlled to support stable mass production of fine-line flexible PCB products. Although surface cleaning may appear to be a simple operation, it requires special attention in flexible PCB fab

In flexible PCB and rigid-flex PCB manufacturing, via filling and via plugging are critical processes used to improve soldering reliability, prevent contamination, and meet high-density assembly requirements. Compared to rigid PCBs, flexible PCBs use polyimide substrates, which makes via filling more challenging and requires stricter process control. Let's now explore common via filling and plugging methods for flexible PCBs, their applications, and key manufacturing consider

Electromagnetic interference (EMI) has become a familiar challenge in flexible PCB design—especially as devices get thinner, faster, and more compact. There’s no single “best” way to block EMI, but several practical shielding approaches have proven reliable across consumer electronics, automotive, medical, and aerospace applications. Among all available choices, three EMI shielding methods stand out as the most widely used and most flexible-friendly:copper layers, shielding f

In the flexible PCB manufacturing process, the black hole process is a crucial step that improves interlayer conductivity and overall product reliability. From a manufacturer’s perspective, this method replaces traditional electroless copper deposition with a cleaner and more stable carbon-based treatment, making it ideal for modern flexible PCB production. What Is the Black Hole Process? The black hole process is a non-metallic conductive hole pretreatment used to create a t
